3050-F

Accessory

Fiberoptics PAM-Fluorometer

The long lasting experience in PAM fluorometry of Heinz Walz GmbH is embedded in the PAM fluorometers 3057-FL and 3050-F.

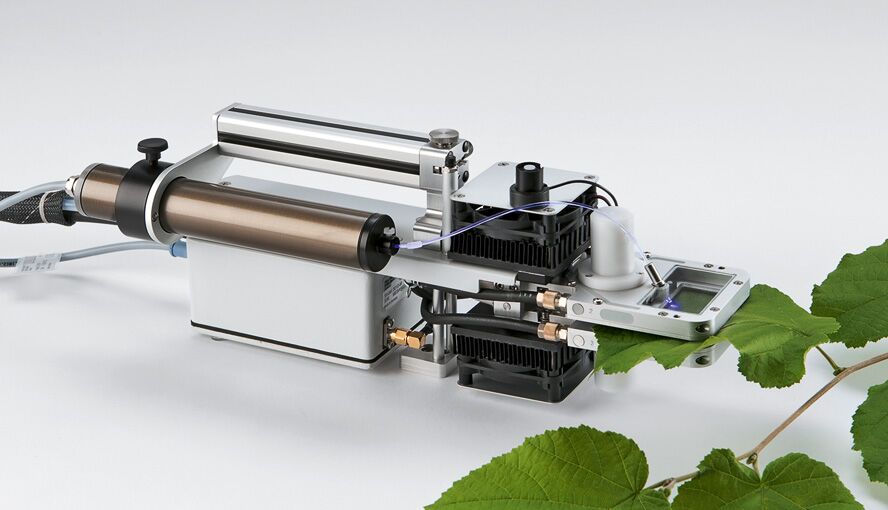

To analyze fluorescence in ambient light, the Fiberoptics PAM-Fluorometer 3050-F can be attached to the Standard Measuring Head 3010-S. It employs a blue LED for measuring light and the saturating light pulses, and also features far-red illumination for F₀’ determination.

The Fiberoptics PAM-Fluorometer 3050-F can be directly operated with the GFS-3000 in the field.

Related Products:

Product

Gas Exchange

Photosynthetic Light Reactions

Light Measurement

GFS-3000

Portable gas exchange fluorescence system

Field

Laboratory

Design

PAM chlorophyll fluorometer enclosed in a metal tube, which can be connected to the Standard Measuring Head 3010-S. Measurement via an optical fiber, entering the leaf chamber of the Standard Measuring Head 3010-S through an air-tight connection

Measuring light

Blue LED (peak: 450 nm), modulation frequency: 10 and 500 Hz. PAR at 2 mm distance and ML-Ampl. 10: Ca. 0.3 μmol m-2 s-1 with low frequency, 15 μmol m-2 s-1 with high frequency

Saturating light

Blue LED (peak: 450 nm). At 1 mm distance: Typ. 11000 μmol m-2 s-1. At 2 mm: Typ. 6000 μmol m-2 s-1

Far-red light

LED (peak: 730 nm)

Signal detection

PIN-photodiode protected by a long pass filter (transmission=50% typ. at 645 nm), selective window amplifier

Measured and calculated parameters

F, F_M, F_M’, F₀, F₀’, F_V/F_M (max. PS II quantum yield), Y(II) (effective PS II quantum yield), ETR, Y(NPQ), NPQ, q_N, q_P, q_L.

Power consumption

0.25 W continuously, 6.5 W (during saturating light pulse), supplied via Standard Measuring Head 3010-S

Operating temperature

-5 to 45 °C

Dimension of light guide

Length: 21 cm,
diameter: 1.5 mm

Dimensions of housing

Length: 20 cm,
diameter: 3 cm

Weight

150 g

Usage

Field

Laboratory

Photosynthetic Light Reactions

Gas Exchange

Leaves, Fruits & Branches

Surfaces
