DUAL-H90

Accessory

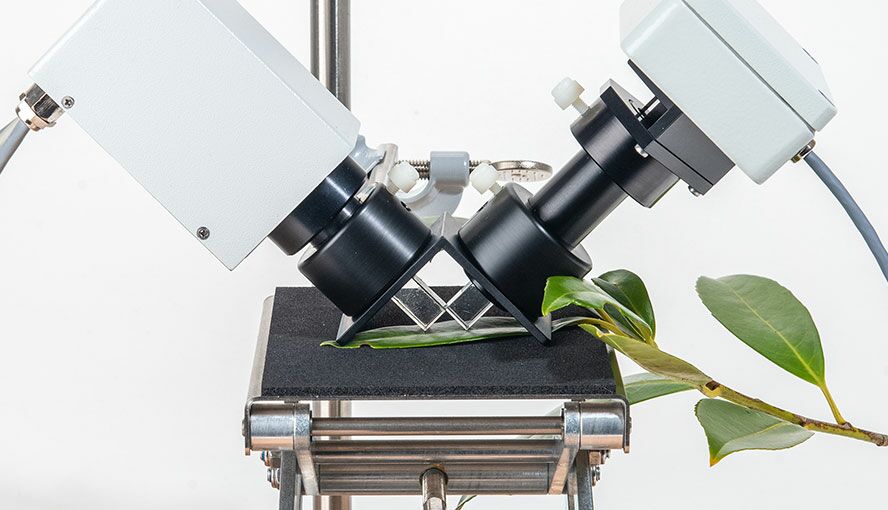

90 Degree Measuring Head Holder

For fluorescence measurements with leaves. The holder positions two measuring heads so that their optical axes are at right angles to each other. Fluorescence excitation and detection is at an angle of 45 degrees. Designed for simultaneously recording short and long wavelength fluorescence (DUAL-PAM-100 application), and for assessment of epidermal UV-A screening (MULTI-COLOR-PAM application)

Related Products:

DUAL-PAM-100 measuring system for simultaneous P700 and chlorophyll fluorescence analysis
Product
Photosynthetic Light Reactions
DUAL-PAM-100
P700 & Chlorophyll Fluorescence Measuring System
Water
Laboratory
Design
Right angle bracket made of black anodized aluminum, with metal rod for attachment to a laboratory stand, each bracket arm with special adapter made of Polyoxymethylene (POM) to position a measuring head. Including a laboratory scissor jack and non-fluorescent rubber foam mat
Dimensions
Holder, 10.0 cm x 4.0 cm x 5.5 cm (W x D x H). Laboratory scissor jack, 14.0 cm x 12.0 cm x 6.0 cm (W x D x H)
Weight
Holder, 175 g. Laboratory scissor jack, 1370 g
