MICRO-HUB

Accessory

Four-Way Distributor

Input port expander when more than 7 MICRO-PAM measuring heads are to be connected to a MONI-DA data acquisition system. The maximum number of measuring heads per MONI-DA is 16 corresponding to 12 heads connected via MICRO-HUB and 4 directly connected heads.

Related Products:

Four MICRO-PAM measuring heads performing simultaneous chlorophyll fluorescence monitoring on variegated leaves

Photosynthetic Light Reactions

Light Measurement

Compact Fluorometer for Long-term Monitoring of Photosynthesis

MONITORING-PAM measuring head MONI-HEAD attached to a leaf for long-term chlorophyll fluorescence monitoring

Photosynthetic Light Reactions

Light Measurement

Fluorometer for Long-term Monitoring of Photosynthesis

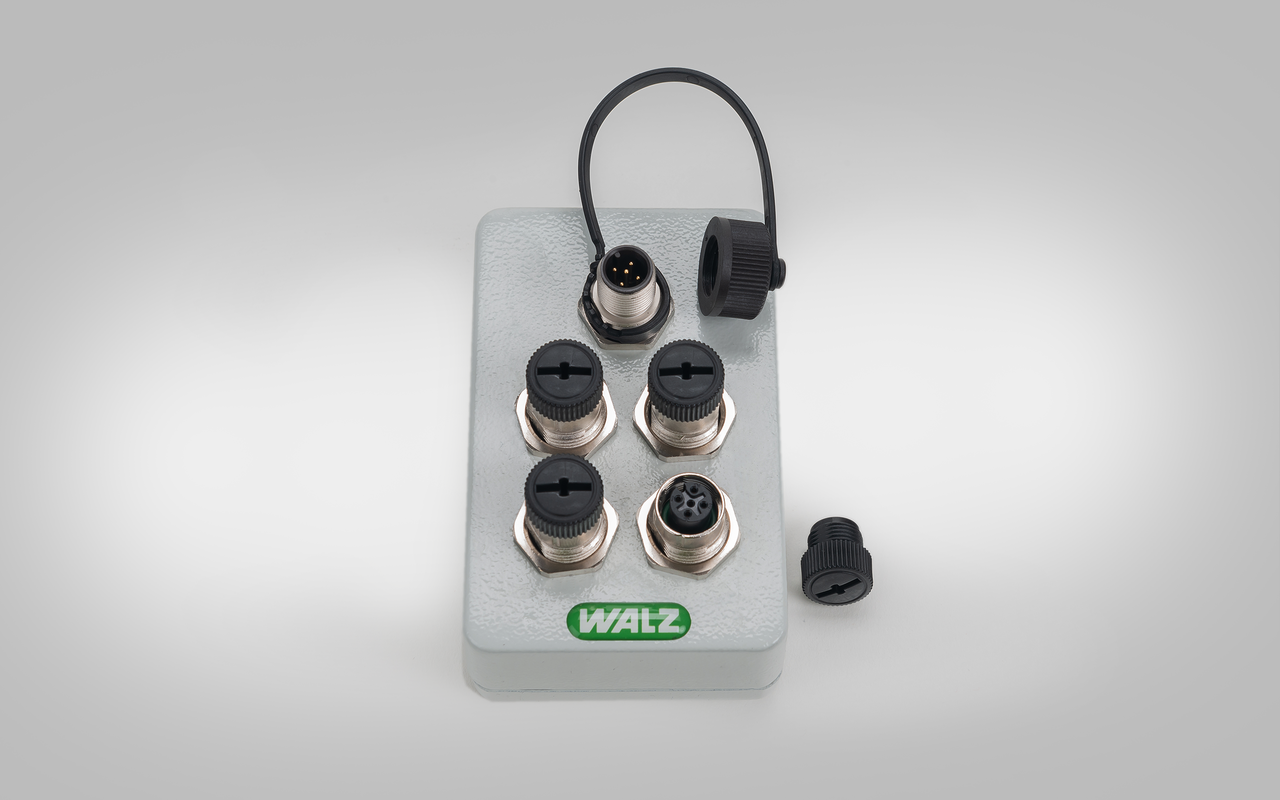

Housing

Aluminum case with one M12 5-pole connector and four M8 5-pole connectors

Links

The interface box connects up to four MICRO-PAM measuring heads to one single MONI-BUS port of a MONI-DA data acquisition system

Recommended maximum cable lengths

10 m between MICRO-PAM measuring head and MICRO-HUB, and between MICRO-HUB and MONI-DA

Dimensions

10 x 6 x 3.5 cm (L x W x H)

Weight

228 g

Operating temperature

-30 to +40 °C

Recommended maximum cable lengths

10 m between MICRO-HEAD/3B and MICRO-HUB, and between MICRO-HUB and MONI-DA

Usage

Field

Photosynthetic Light Reactions

Leaves, Fruits & Branches

Lichen & Mosses

Corals

Suspensions (High Conc.)

Surfaces

Algae
