RGBW-L084

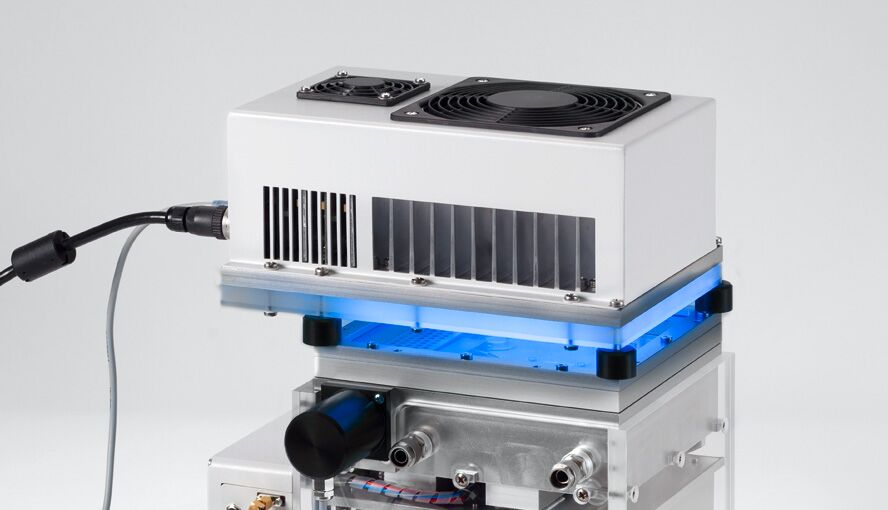

LED-Panel fitting to the gas exchange chamber 3010-GWK1: Illuminated area 14 cm x 12 cm.
LED Colors: red, green, blue and white; maximum output (all colors together): 2000 μmol m^-2 s^-1 or better.
Air cooled; with separate power supply. Colors can be mixed with red, green, blue, and white in steps of intensity 0 to 100 or more; total intensity can be chosen in steps of 0.1%; operation with GFS-Win software via RS485 connector.

Blue: 455 ±10 nm, HBW (half bandwidth) 440 - 460 nm
Green: 525 ±10 nm, HBW 500 - 545 nm
Red: 625 ±5 nm, HBW 620 - 640 nm
White: 450 ±10 nm, HBW 435 - 460 nm; second peak at 590 ±25 nm, HBW 510 - 640 nm with tail up to 800 nm

± 10% within the 14x12 cm area or ± 3 μmol m^-2 s^-1 (whatever is bigger).

PAR sensors with multiplier between -50 and -800 μmol m^-2 s^-1 per μA result in a range of 0 to 6400 μmol m^-2 s^-1, resolution: 1 μmol m^-2 s^-1

10 A slow-blow fuse, 5x20 mm

16 V, 8 A

AC Power Supply 3020-N for laboratory operation

± 10% within the 14x12 cm area or ± 3 μmol m^-2 s^-1 (whatever is bigger).

27 cm x 19 cm x 13 cm L x W x H
