Accessories for MONITORING-PAM - STAND-ALONE Configuration of TERRESTRIAL Version

Four-Way Distributor MICRO-HUB

Input port expander when more than 7 MONI-PAM measuring heads are to be connected to a MONI-DA data acquisition system. The maximum number of measuring heads per MONI-DA is 16 corresponding to 12 heads connected via MICRO-HUB and 4 directly connected heads.

WiFi Modem

In the presence of WiFi network coverage, the WiFi modem transfers MONI-DA data via internet and a special Walz server to your computer. When WiFi is not available but cellular network coverage is present, the WiFi modem can be connected to the Walz data server using a mobile hotspot.

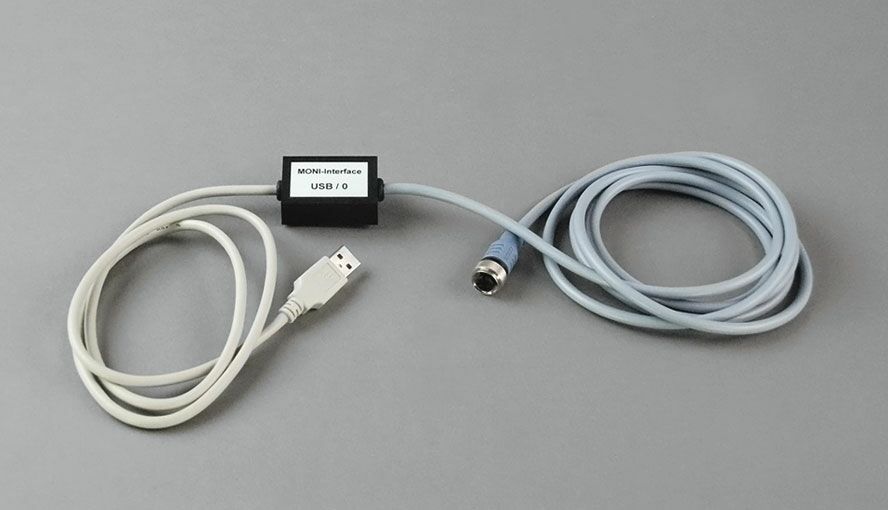

MONI-Interface USB/0

Interface cable connecting USB port of a computer to an input socket of the data acquisition system MONI-DA. The PC Interface USB-0 permits adjustment of MONI-DA settings by the user interface of WinControl-3.

Satellite Modem

When terrestrial wireless communication is unavailable, a satellite modem is available to transfer data via communications satellite and dedicated Walz server to your office.
