2030-B and 2060-M

Accessory

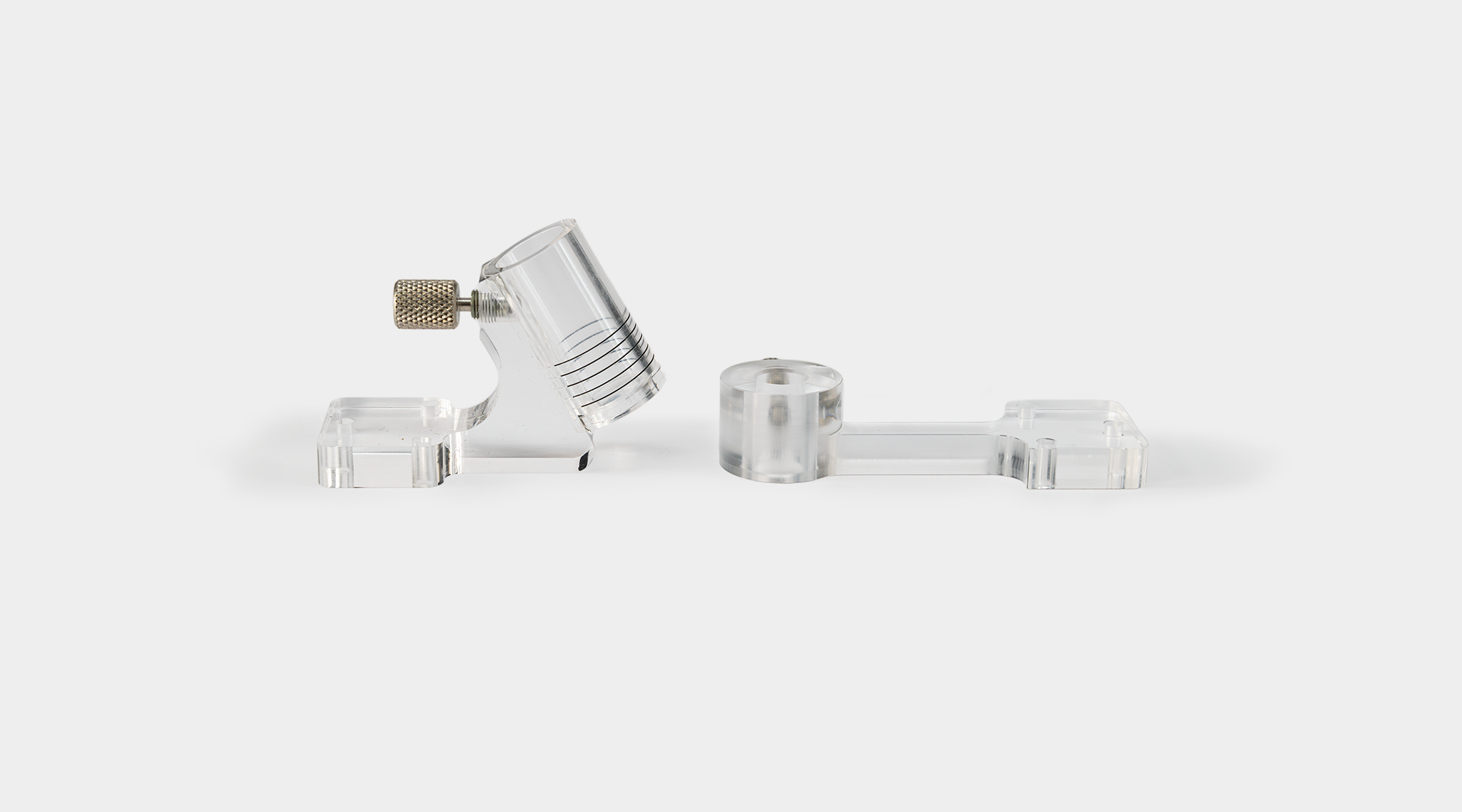

Adapters for Connection of Leaf Clip Holder

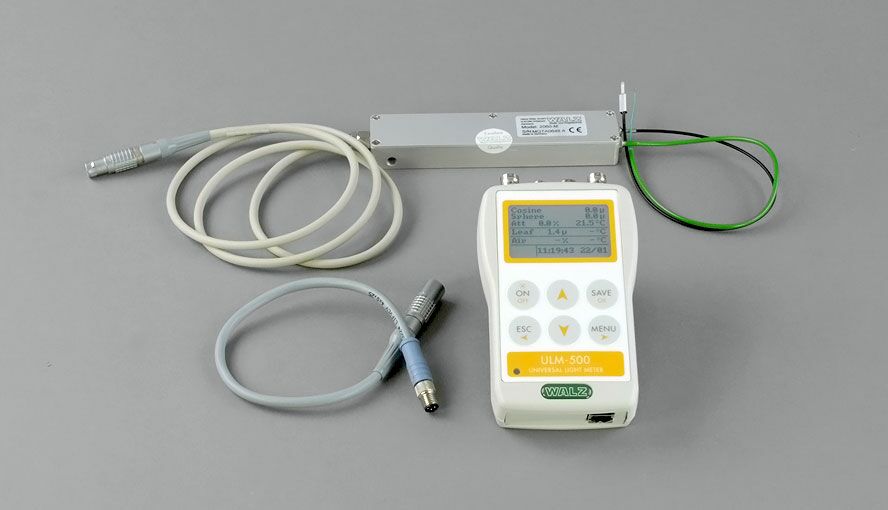

Using an adapter, the leaf temperature and light sensors of the Leaf Clip Holder 2030-B and the Micro Quantum Temperature Sensor 2060-M can be read with by the ULM-500.
Please note that 2035-B and 2065-M are not compatible.

Related Products:

ULM-500 front view with first display page

Product

Light Measurement

ULM-500 Light Meter & Logger

Universal Light Meter & Data Logger

Field

Laboratory

Water

Mini quantum sensor

Magnetically attached, swivel-mounted sensor (see LS-C sensor), selective PAR measurement, 0 to 20000 μmol m-2 s-1 PAR

Thermocouple

Ni-CrNi, diameter 0.1 mm, -20 to +60 °C

Output

PAR, high sensitivity range: 0 to 1000 μmol m-2 s-1; normal sensitivity range: 0 to 20000 μmol m-2 s-1 (output 0 to 2.5 V for each range). Leaf temperature, -20 to +60 °C (0 to 0.8 V). Remote trigger button, signal line connected to ground

Power supply

PAM-2500 leaf clip socket (5 V/4 mA)

Cable length

100 cm

Dimensions

17 cm x 5.7 cm (max.) x 8 cm (max.) (L x W x H)

Weight

310 g

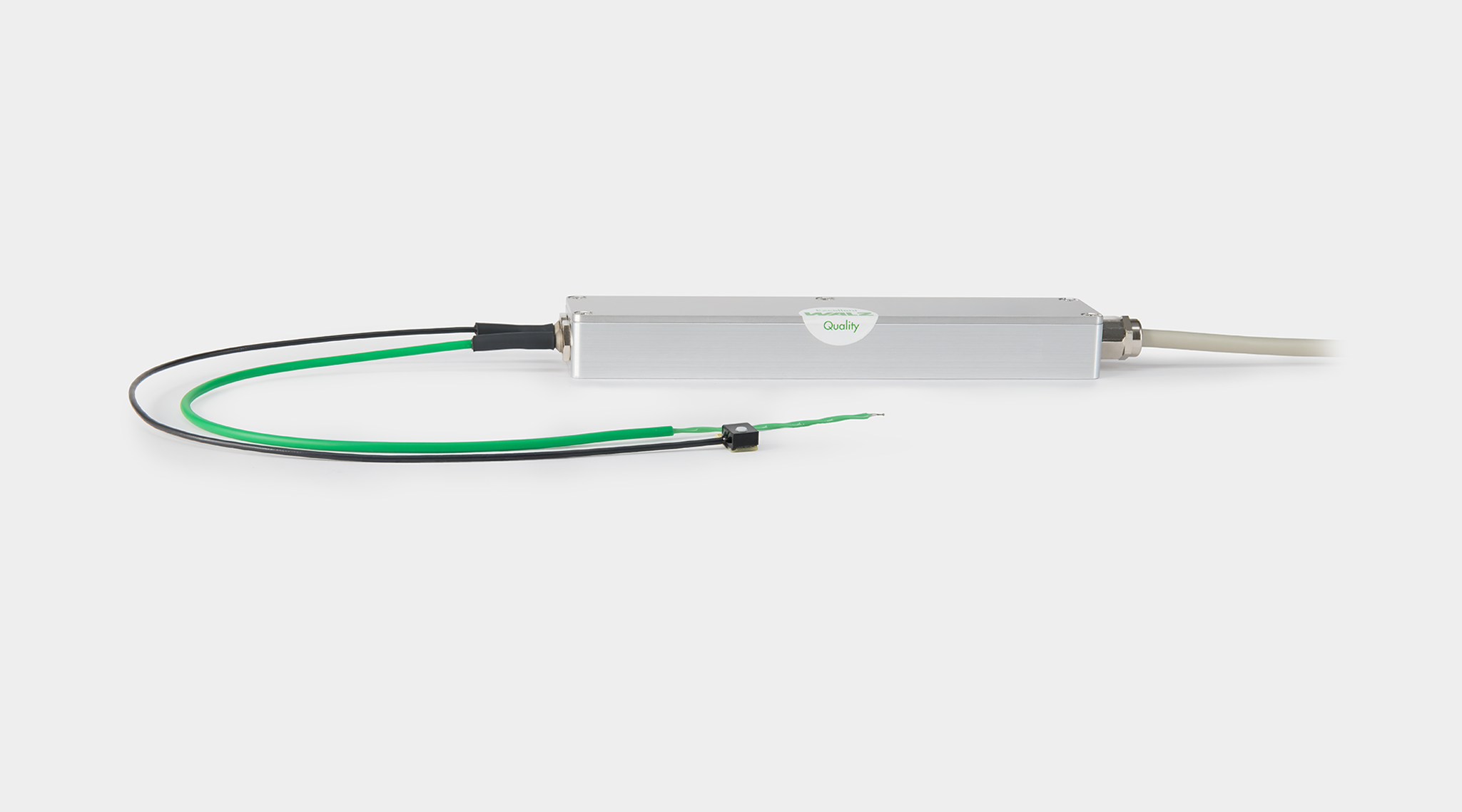

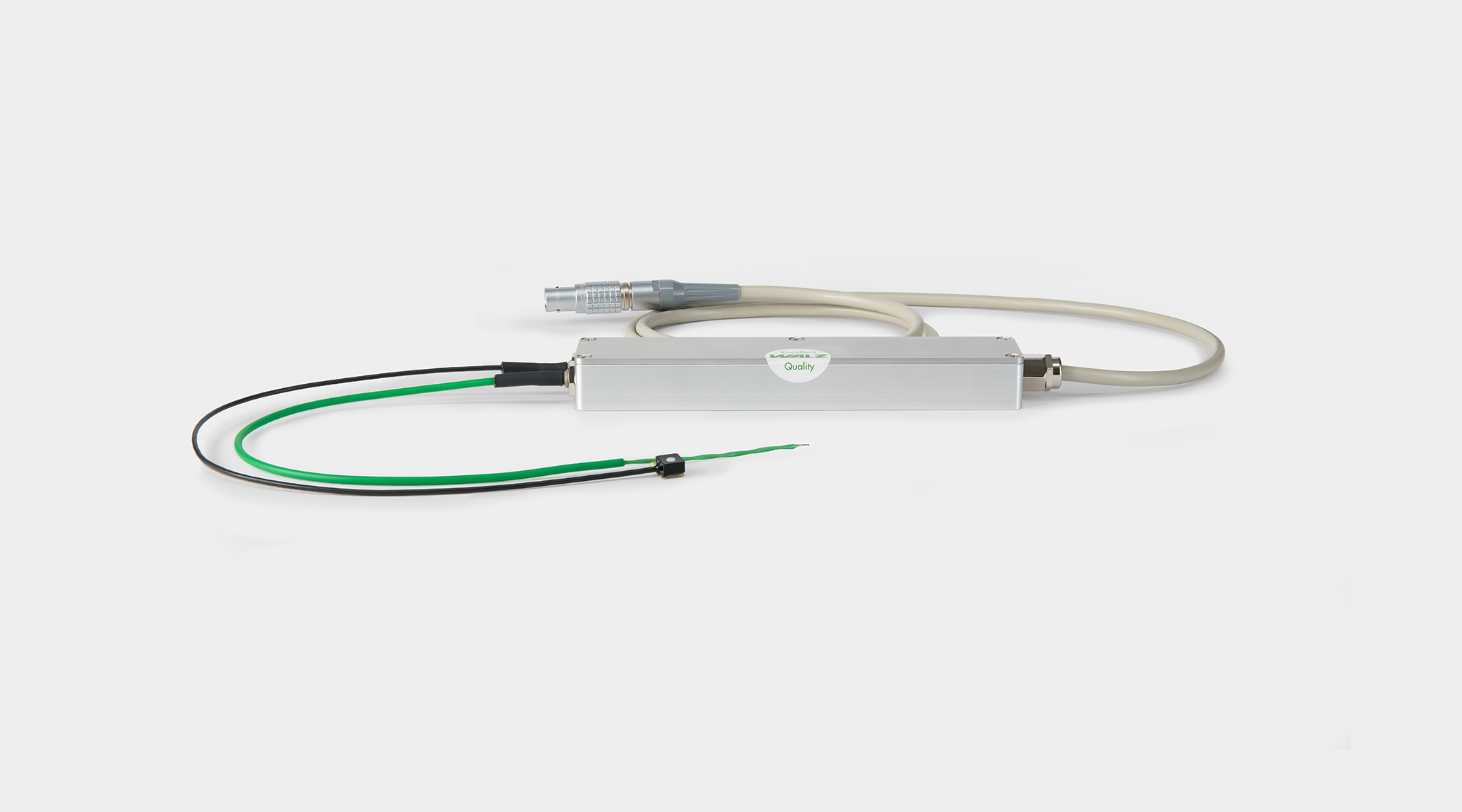

Mini quantum sensor

LS-C sensor, selective PAR measurement, 0 to 20000 μmol m-2 s-1 PAR

Thermocouple

Ni-CrNi, 0.1 mm diameter,
-20 to +60 °C

Output

PAR, high sensitivity range: 0 to 1000 µmol/(m2·s); normal sensitivity range: 0 to 20000 μmol m-2 s-1 PAR (output 0 to 2.5 V for each range). Leaf temperature, -20 to +60 °C (0 to 0.8 V)

Power supply

PAM-2500 leaf clip socket (5 V/4 mA)

Length of power cable

100 cm

Length of sensor cables

30 cm

Dimensions

16 cm x 3 cm x 1.7 cm (L x W x H)

Weight

220 g

Usage

Laboratory

Field

Photosynthetic Light Reactions

Leaves, Fruits & Branches
