DUAL-BA

Accessory

Leaf Positioning Setup

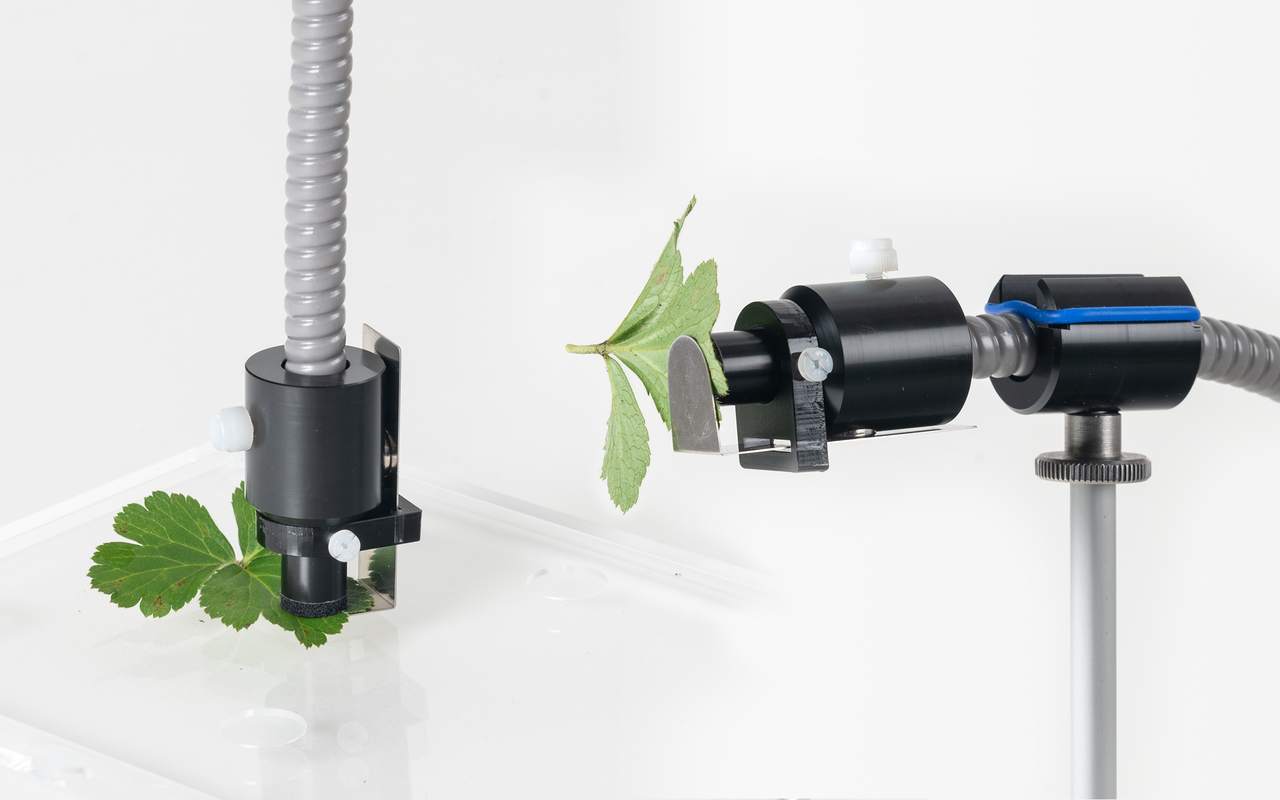

The DUAL-BA has been designed to easily and quickly position the fiber optics of a PAM fluorometer on attached leaves. The accessory is compatible with the DUAL-PAM/F, MINI-PAM-II and PAM-2500 fluorometers. It includes a duct with laterally mounted neodymium magnet and a screw to lock the fiber optics tip. An angle bracket made of a spring steel strip positions the leaf in front of the fiber optics, whereby the steel strip is held by the magnet of the duct. The DUAL-BA includes a fiber optics guide with metal rod to mount the guide on a stand.

Related Products:

DUAL-PAM-100 measuring system for simultaneous P700 and chlorophyll fluorescence analysis
Product
Photosynthetic Light Reactions
DUAL-PAM-100
P700 & Chlorophyll Fluorescence Measuring System
Water
Laboratory
new
MINI-PAM-II portable chlorophyll fluorometer with sun-readable touchscreen
Product
Photosynthetic Light Reactions
Light Measurement
Gas Exchange
MINI-PAM-II
Portable PAM Fluorometer for Field and Laboratory
Water
Field
Laboratory
PAM-2500 portable chlorophyll fluorometer with 2030-B leaf clip and tablet PC connected via Bluetooth
Product
Photosynthetic Light Reactions
Gas Exchange
Light Measurement
PAM-2500
High-performance Field and Laboratory Chlorophyll Fluorometer
Water
Field
Laboratory
Design
Tube-shaped fiber tip holder composed of polyoxymethylene (POM; 4.5 cm x 2.5 cm, L x D max,) with recessed permanent neodymium magnet. Spring steel band (0.3 mm thick, 1.5 cm wide) consisting of two arms (2 cm and 5 cm, respectively) which form a right angle. The leaf is positioned between the 2 cm arm and the fiber optics tip. The 5 cm arm is attached to the fiber tip holder by the magnet. The 5 cm arm runs in a slit guide. Including a stand with fiberoptics guide
