ED-101US/MD

Accessory

Optical Unit

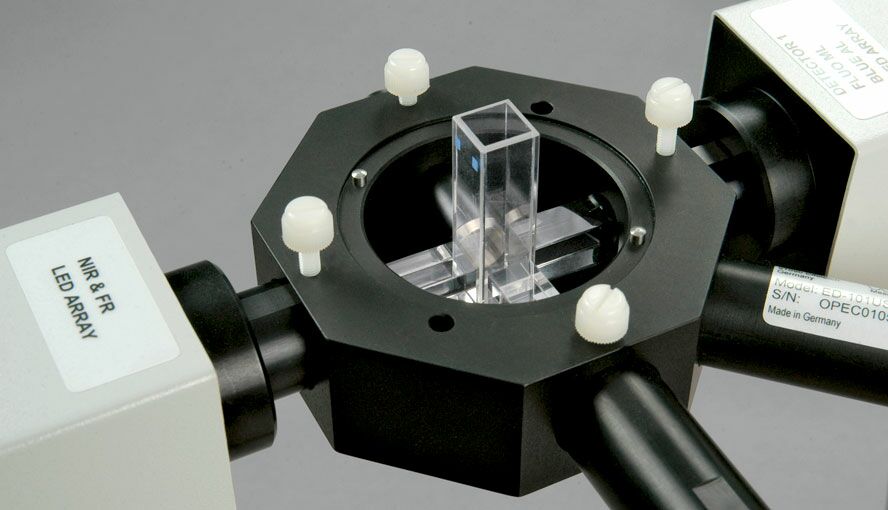

For measurements with suspensions using 10 x 10 mm fluorescence cuvettes, a black aluminum unit (ED-101US/MD) is available. The unit holds the fluorescence cuvette in its center and has four light ports to connect the measuring heads used. A two-part black cover of the cuvette compartment with syringe port is provided.

Related Products:

Product

Photosynthetic Light Reactions

DUAL-KLAS-NIR

P700, Plastocyanin, Ferredoxin & Chlorophyll Fluorescence Measuring System

Laboratory

DUAL-PAM-100 measuring system for simultaneous P700 and chlorophyll fluorescence analysis

Product

Photosynthetic Light Reactions

DUAL-PAM-100

P700 & Chlorophyll Fluorescence Measuring System

Water

Laboratory

new

MULTI-COLOR-PAM-II multi-wavelength chlorophyll fluorometer for advanced PSII analysis

Product

Photosynthetic Light Reactions

MULTI-COLOR-PAM-II

ST-Kinetics and Multi-Wavelength Chlorophyll Fluorometer

Water

Laboratory

Design

Black-anodized aluminum body with central 10 x 10 mm glass cuvette; for attachment of Measuring Heads and Miniature Magnetic Stirrer PHYTO-MS; additional ports for attachment of two additional measuring heads

Weight

750 g

Temperature Control Block ED-101US/T

Sectioned block with central 10 x 10 mm opening to be mounted on top of the ED-101US/MD unit; to be connected to external flow-through water bath (not included), weight: 250 g

Miniature Magnetic Stirrer PHYTO-MS

Based on a device manufactures by h+p (type Variomag-Mini); featuring adapter to be mounted in the bottom port of the Optical Unit ED-101US/MD; powered and controlled by the Power-and-Control-Unit

Spherical Micro Quantum Sensor US-SQS/WB

3.7 mm Ø diffusing sphere coupled to integrated PAR sensor via 2 mm diameter fiber; compact amplifier unit and special holder for mounting on Optical Unit ED-101US/MD; to be connected tot the Power-and-Control Unit

Temperature Control Block ED-101US/T

Sectioned block with central 10 x 10 mm opening to be mounted on top of the ED-101US/MD unit; to be connected to external flow-through water bath (not included), weight 250 g

Miniature Magnetic Stirrer PHYTO-MS

Based on device manufactured by h+p (type Variomag-Mini); featuring adapter to be mounted in bottom port of the Optical Unit ED-101US/MD; powered and controlled by the Power-and-Control-Unit DKN-C

Spherical Micro Quantum Sensor US-SQS/WB

3.7 mm ø diffusing sphere coupled to integrated PAR sensor via 2 mm diameter fiber; compact amplifier unit and special holder for mounting on Optical Unit ED-101US/MD; to be connected to the Power-and-Control Unit DKN-C

Usage

Water

Laboratory

Photosynthetic Light Reactions

Leaves, Fruits & Branches

Suspensions (High Conc.)

Lichen & Mosses

Algae
