LS-C

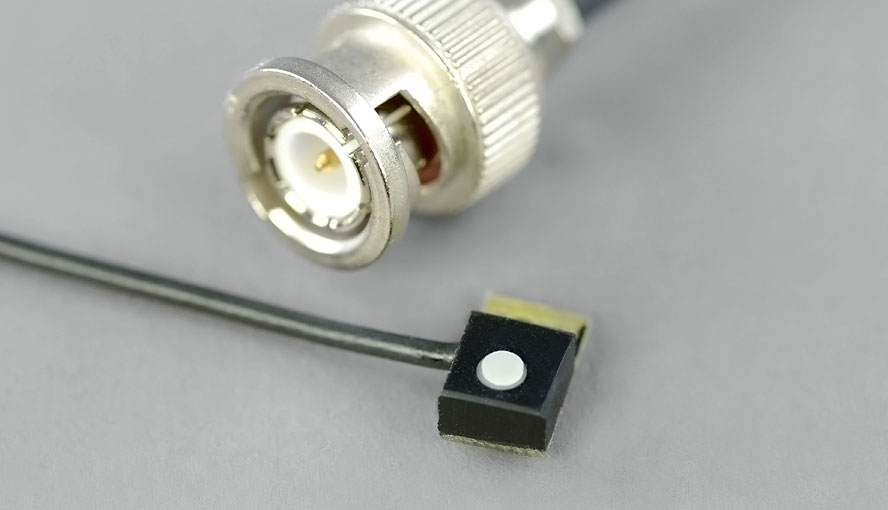

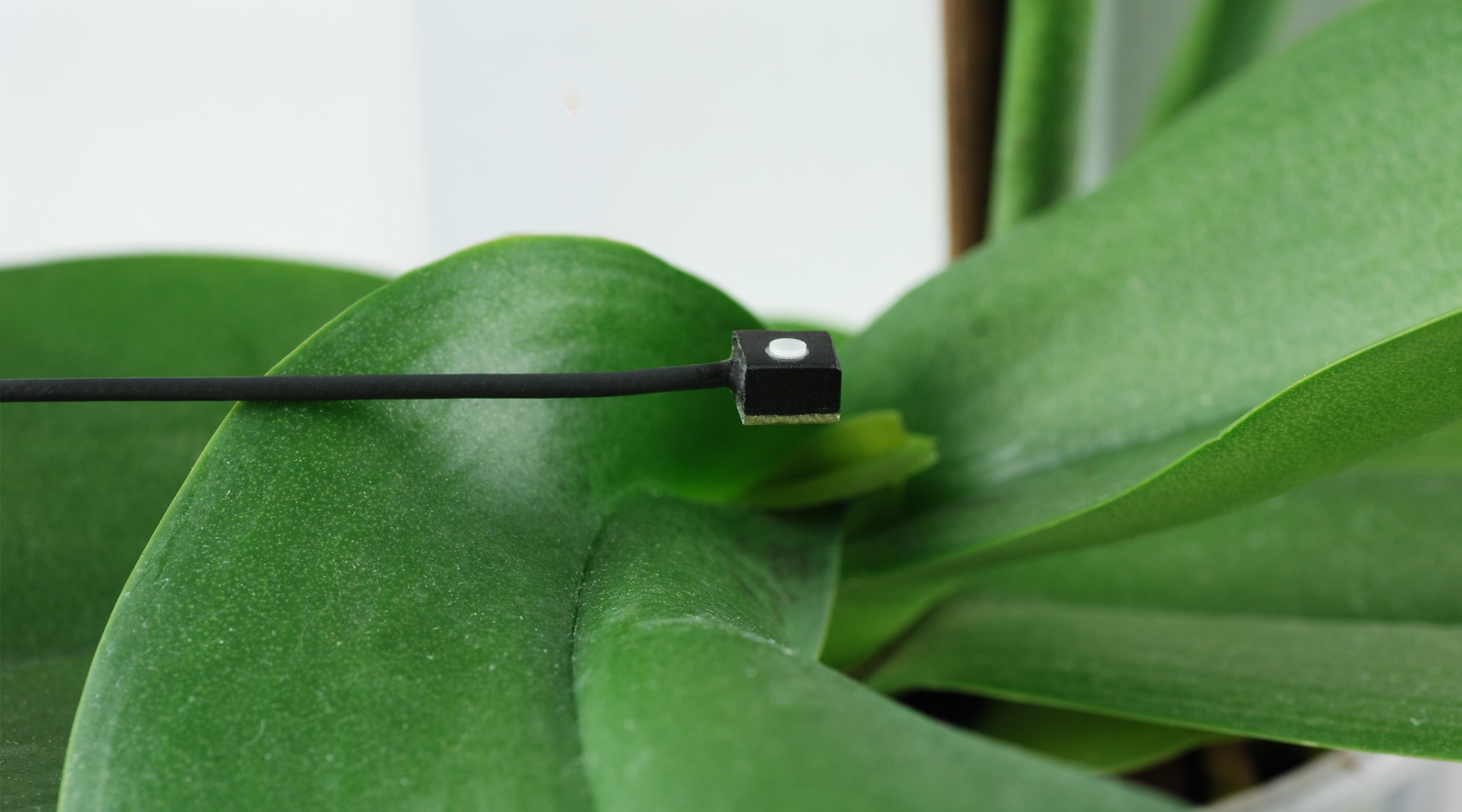

Small versatile waterproof mini quantum sensor for selective PAR measurement, cosine corrected for light incident at an angle between -30 ° to +30 ° from surface normal for PPFD (photosynthetical photon flux density) measurement, with base plate for screw connection.

Black resin material

Perspex

High stability silicone photovoltaic detector with filter set for PAR correction (see “General Features” for typical response)

0.01 %/K

BNC

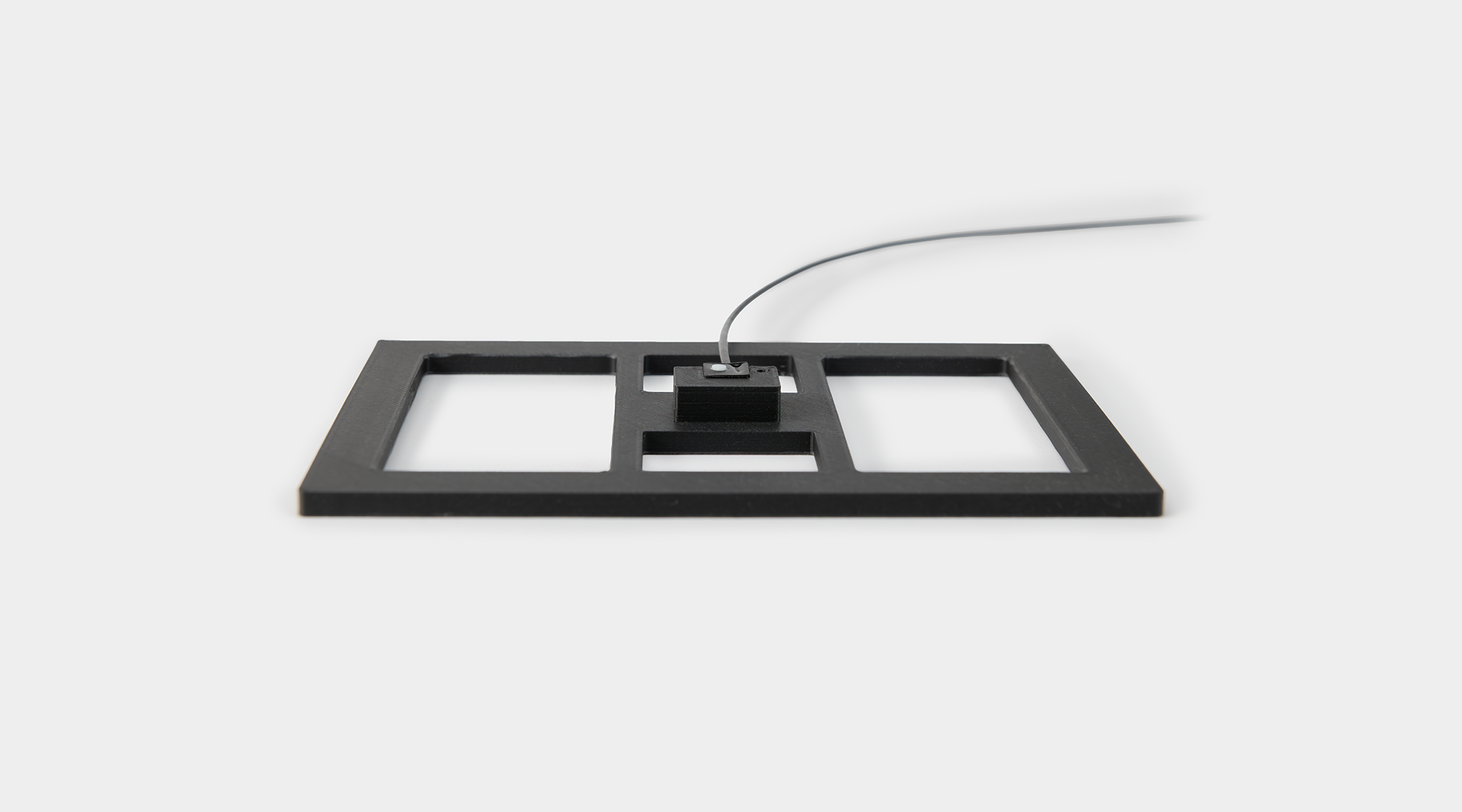

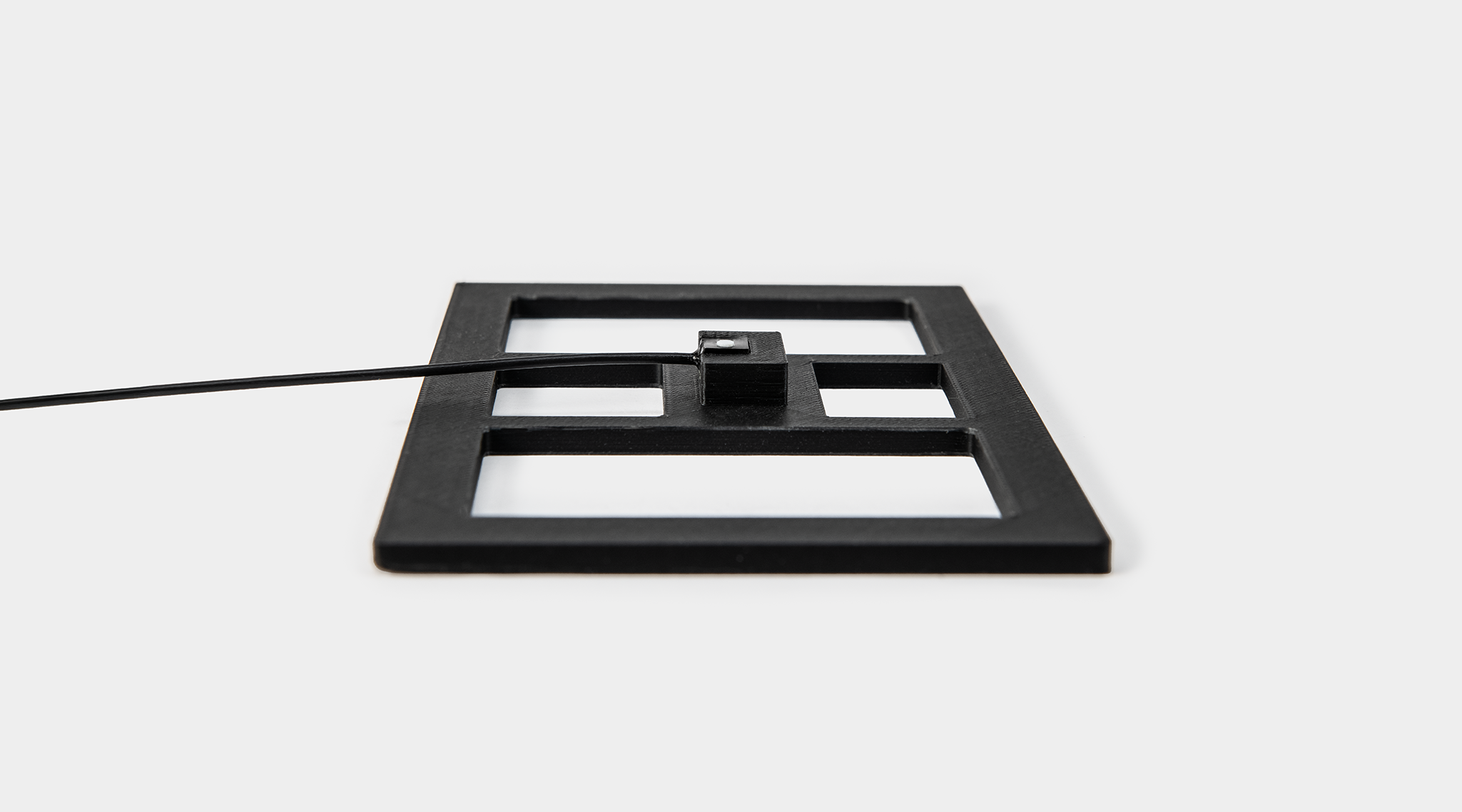

Base plate: 12 mm x 7 mm x 1 mm (H x W x L)
Sensor housing 5 mm x 7.5 mm x 7 mm (H x W x L)
Diffuser diameter: 3 mm

26 g

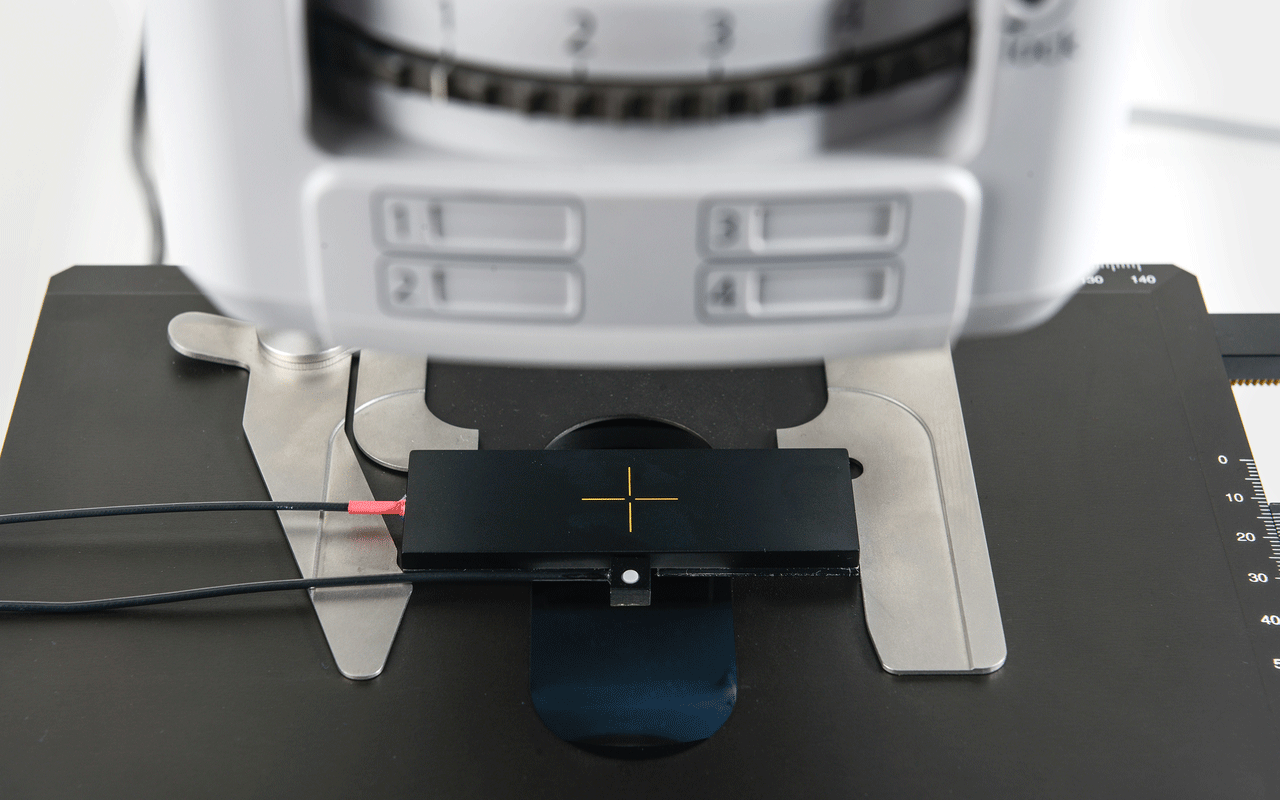

Microscopy quantum sensor for PPFD (photosynthetical photon flux density) measurement.

Black anodized aluminum housing

Resin with fluorescence dye

High stability silicon photovoltaic. Signal output typically 1.5 μA / (1000 μmol m^-2 s^-1)

0.01 %/K

± 5 %

0 °C … + 40 °C

55 cm

BNC

Not required

Height: 5.5 mm
Length: 76 mm
Width: 26 mm
Diffuser diameter: 0.2 mm
