IMAGING-PAM

Version:

Product

Chlorophyll Fluorescence System

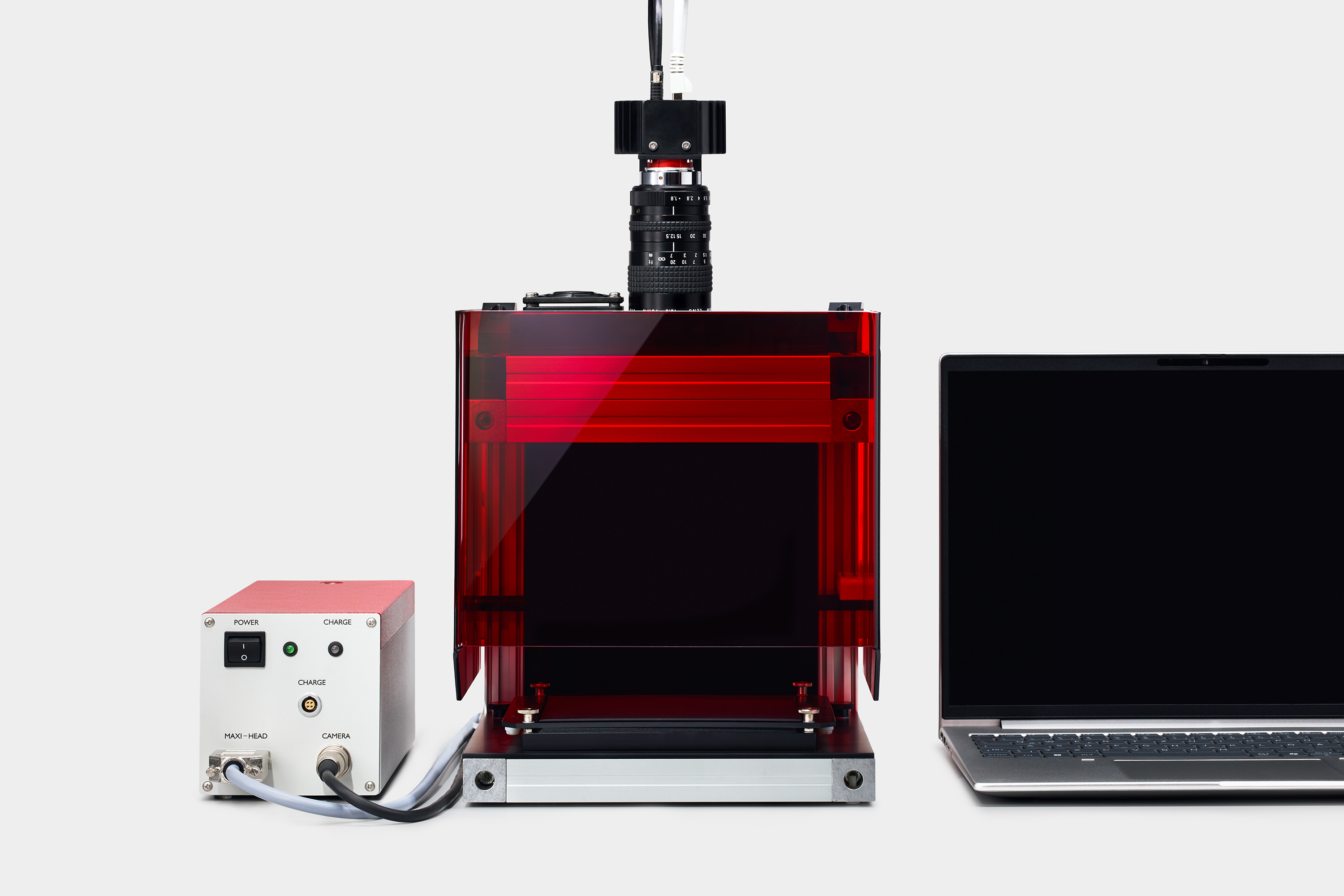

Maxi Version - IMAGING-PAM M-Series

The MAXI version of the IMAGING-PAM M-Series combines exceptional imaging performance with a robust and flexible design tailored for demanding research applications. At its core is a compact yet remarkably powerful 300 W LED array, delivering highly homogeneous illumination across areas of 10 × 13 cm - ideal for microtiter plates and similarly sized samples. This advanced light engine supports pulse-modulated excitation, actinic illumination, and saturation pulses, ensuring full compatibility with all PAM-based fluorescence protocols. In addition, the MAXI measuring head can be integrated directly into fully customized experimental setups, offering maximum flexibility for unique research environments and bespoke system configurations.

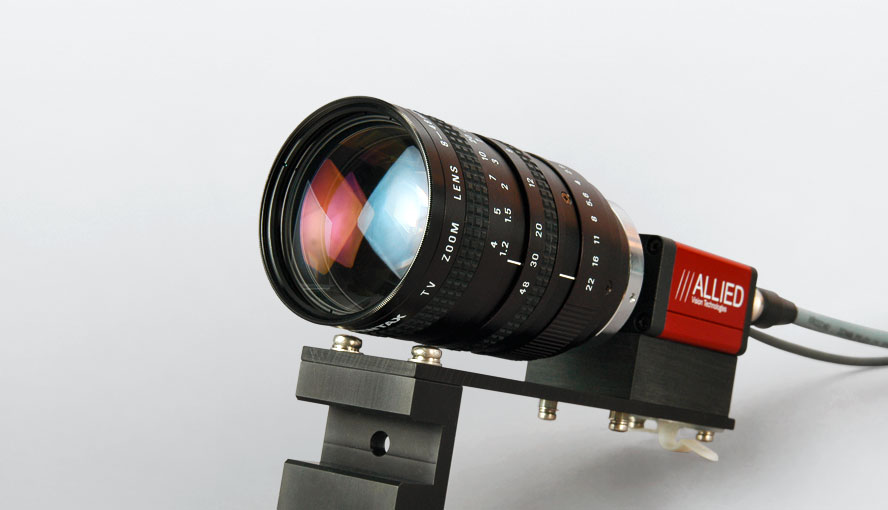

A high-quality CMOS camera is available to meet different sensitivity and resolution requirements. The IMAG-K9 (with a 2/3" chip, 1280 x 960 resolution, and 4-pixel binning) provides outstanding performance, even in low light. For applications requiring high sensitivity, a prime lens with an F1.4 aperture and a focal length of 16 mm with very low distortion is available. If a manual zoom for greater flexibility is desired, an F1.8 lens with a focal length ranging from 12.5 to 75.0 mm is available.

This configuration allows for the seamless adjustment of the imaging field from 10 × 13 cm to 13 × 22 mm while maintaining a constant image resolution. Imaging Win’s new digital zoom function further increases the flexibility of zoom lenses and also expands the possibilities for fixed focal length lenses.

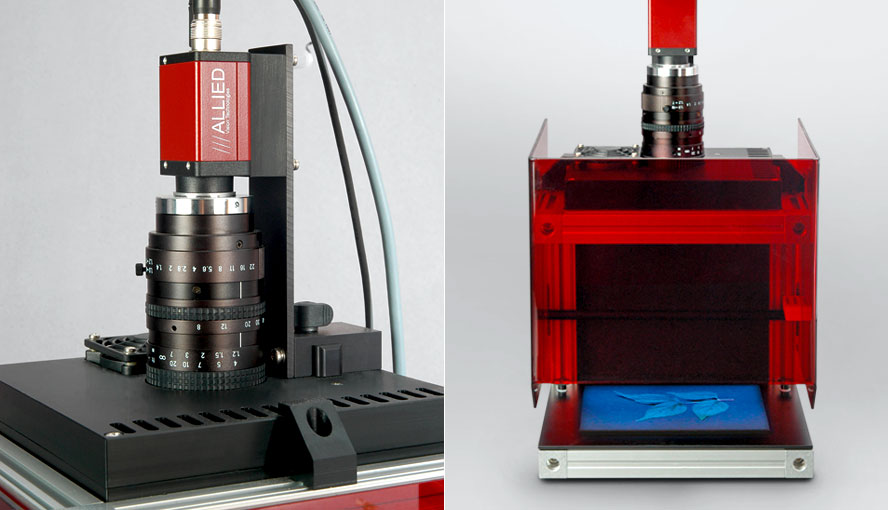

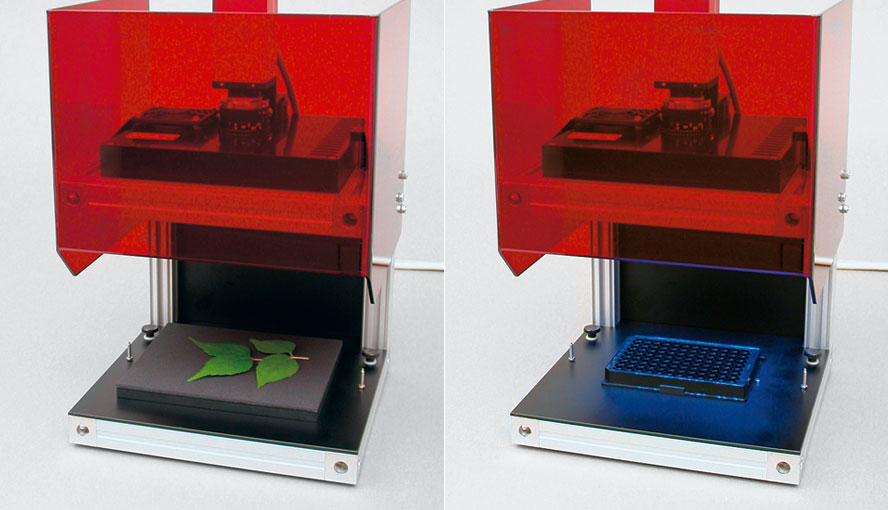

For comfortable and safe operation, the system can be complemented with the dedicated IMAG-MAX/GS Mounting Stand, equipped with integrated eye protection via a red Perspex hood. This allows users to observe chlorophyll fluorescence directly during measurements. An adjustable x-y stage or multiwell plate can be positioned at the precisely defined working distance of 18.5 cm, ensuring reproducible sample placement.

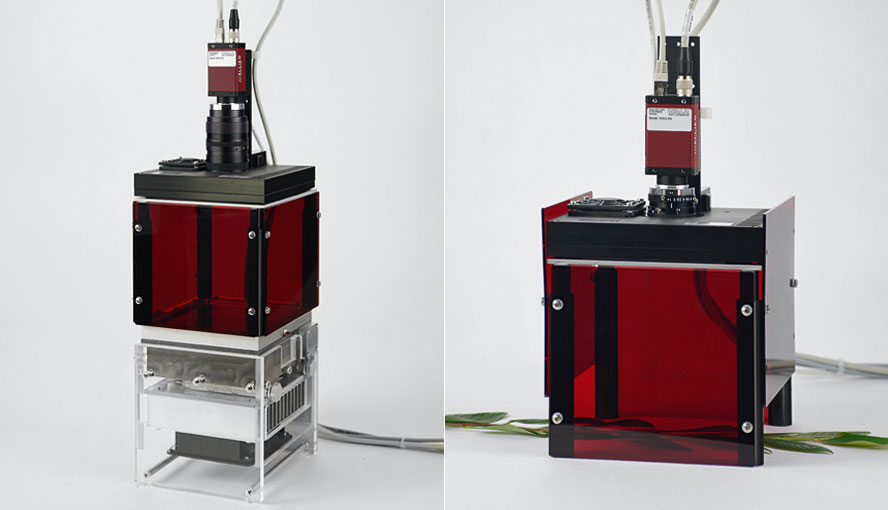

For even greater flexibility, the bottom plate of the stand IMAG-MAX/GS can be removed, allowing the entire system to be elevated using the provided legs. This enables imaging of plants growing in trays or pots. In addition, the MAXI version can be combined with the large gas-exchange cuvette 3010-GWK1 of the GFS-3000 using optional adapter sets - opening the door to integrated fluorescence and gas-exchange measurements under fully controlled environmental conditions.

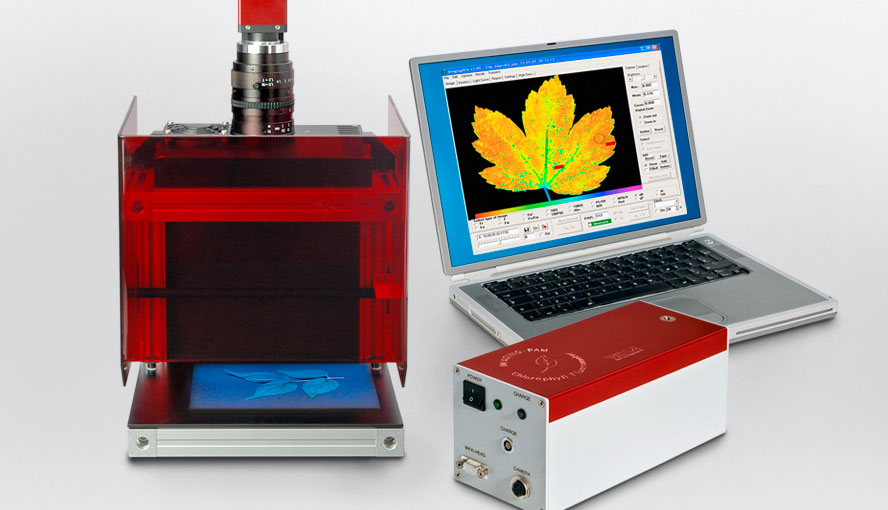

System Components of the MAXI Version

Multi Control Unit

  • IMAG-CG Multi Control Unit to connect Measuring Head and GigE –Vision® CCD camera as M-Series IMAGING-PAM MAXI, MINI and MICROSCOPY version including ImagingWin GigE Software.

Measuring Head

  • IMAG-MAX/L (blue measuring light version, 450 nm, standard applications) extendable with optional filter plate
  • IMAG-MAX/F for samples with reflective properties.
  • IMAG-MAX/LR (red measuring light version, 650 nm, e.g. for cyanobacteria) special filter plate already included

CMOS Camera and Lenses

  • IMAG-K9 (2/3" chip readout, primary resolution 1392 x 1040 pixels and 2x2 binning) with K9-MIN prime lens (F1.4/f=25 mm)

Camera Mounting Set

  • The camera requires the K9-MAX/M or K7-MAX/M Mounting Set for stable attachment to the MAXI-Head LED Array IMAG-MAX/L or IMAG-MAX/LR.

Mounting

  • IMAG-MAX/GS Mounting Stand with Eye Protection, protects the eyes and allows direct observation of the red chlorophyll fluorescence

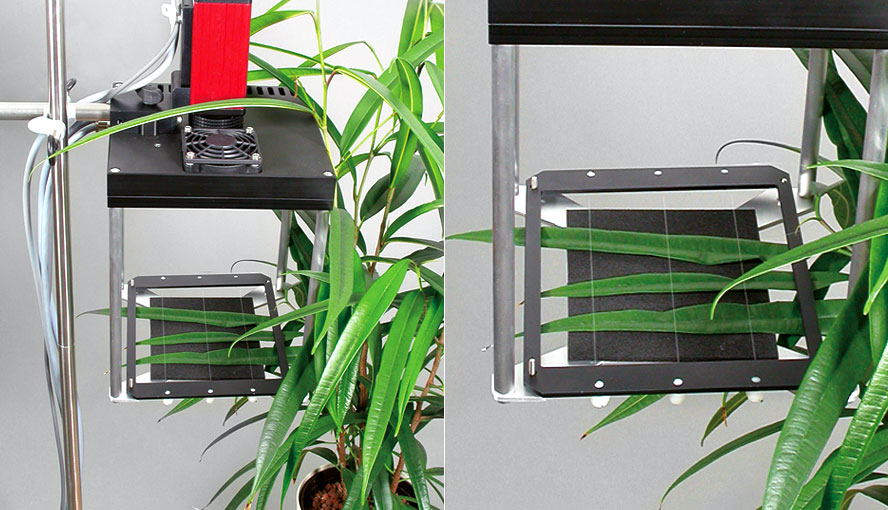

  • IMAG-MAX/B Leaf Distance Holder for experiments under ambient light and fixed working distance of 18.5 cm
  • ST-101 Laboratory stand with wooden baseplate for the work with the open measuring head MAXI or MINI imaging head
  • IMAG-MAX/HF the fruit adapter helps to keep fruit like apple or capsicum in place for the PAM experiment

Computer

  • IMAG-PC a brand notebook PC

Optional

  • IMAG-MAX/F filter plate in conjunction with IMAG-MAX/L for samples with mirror-surface properties. A filter plate is factory provided in conjunction with IMAG-MAX/LR.

System Combination

  • IMAG-MAX/GWK1 Adapter for Gas-Exchange Chamber 3010-GWK1 with Eye Protection – only compatible with MAXI imaging version.
