Probing of Cells and Tissue in Microbial Mats and Leaves

WinControl-3 Software

General Features and Graphical User Interface

The MICROFIBER-PAM can be operated by Windows computers running the WinControl-3 software. The same software operates the fluorometers DIVING-PAM-II, MICRO-PAM, MINI-PAM-II, MONITORING-PAM, and JUNIOR-PAM, PAM fluorometers operated via the PAM-CONTROL interface (MICROSCOPY-PAM, MICROFIBER-PAM and WATER-PAM FIBER-Version) as well as the Universal Light Meter ULM-500.

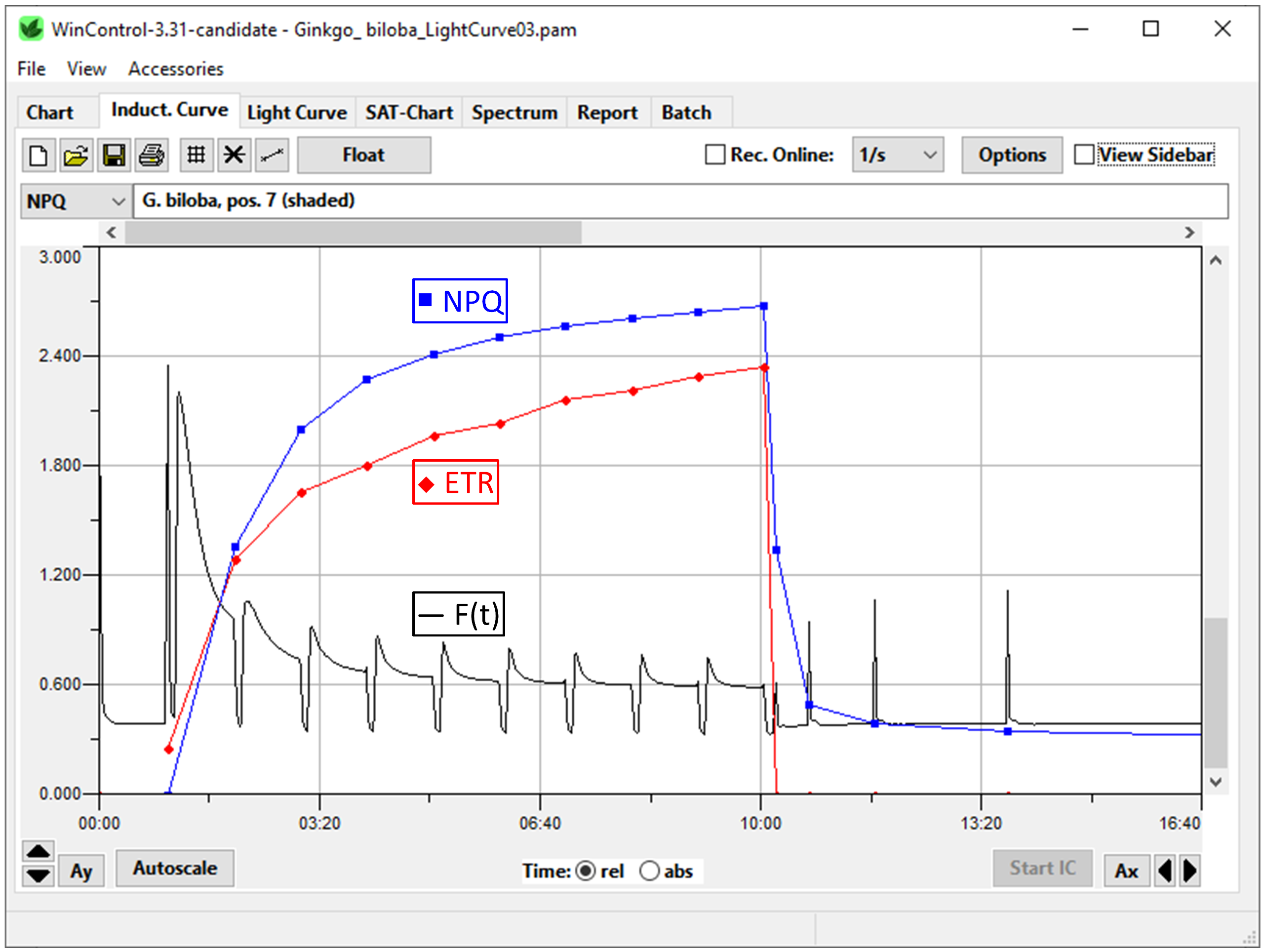

Induction Curve Window: The window displays continuous PAM fluorescence (Ft) as black line. The non-photochemical quenching parameter, NPQ, is drawn in blue and electron transport rate (ETR) is shown in red.

WinControl-2 Software

General Features and Graphical User Interface

The software WinControl-2 was developed for on-line operation via the interface PAM-CONTROL of the fluorometers MICROSCOPY-PAM, MICROFIBER-PAM, and WATER-PAM FIBER Version. WinControl-2 logs fluorescence data and automatically calculates fluorescence ratio parameters derived from saturation pulse analysis.

The WinControl-2 software runs only on Windows 7 32 bit or older Windows 32 bit operating systems.
